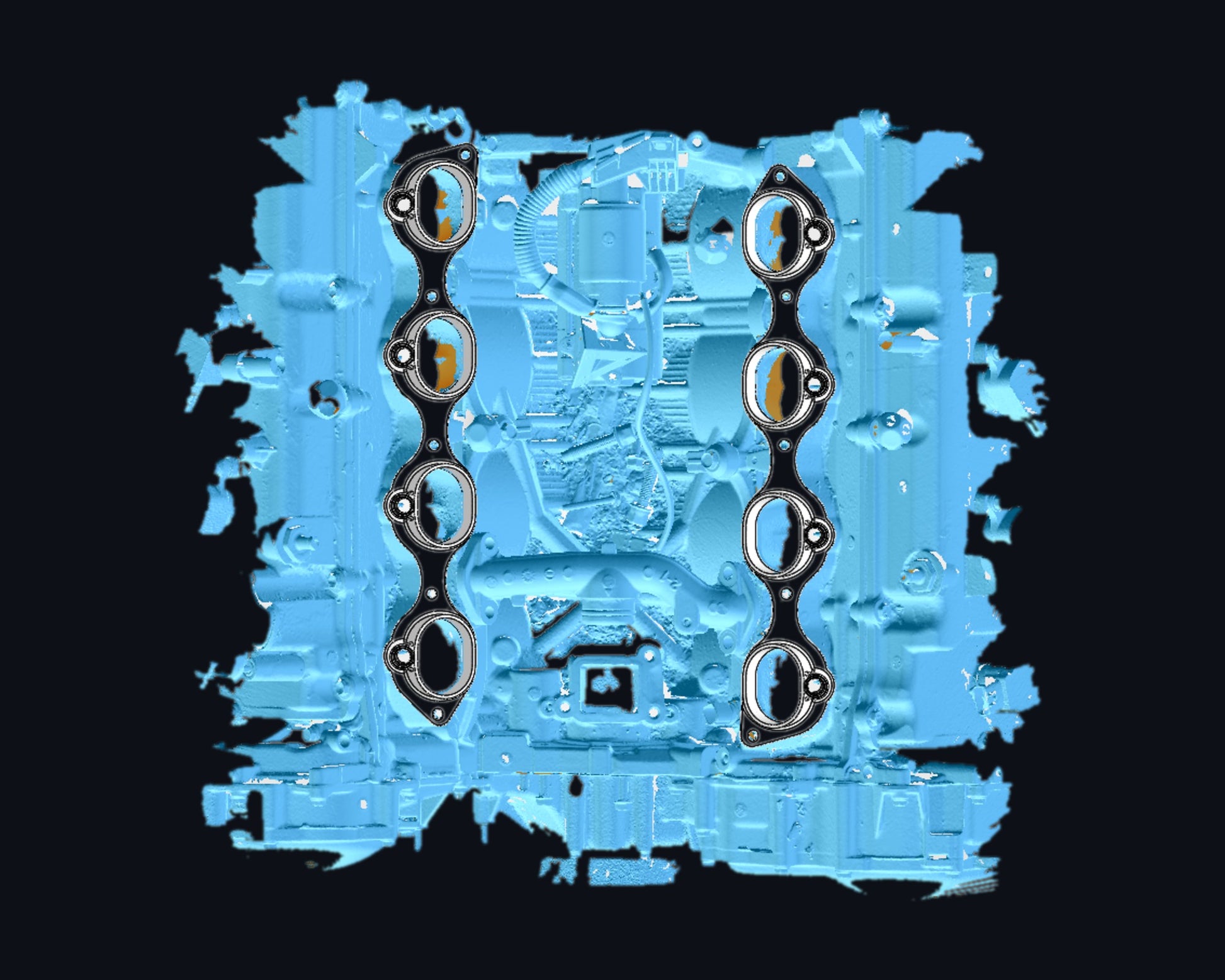

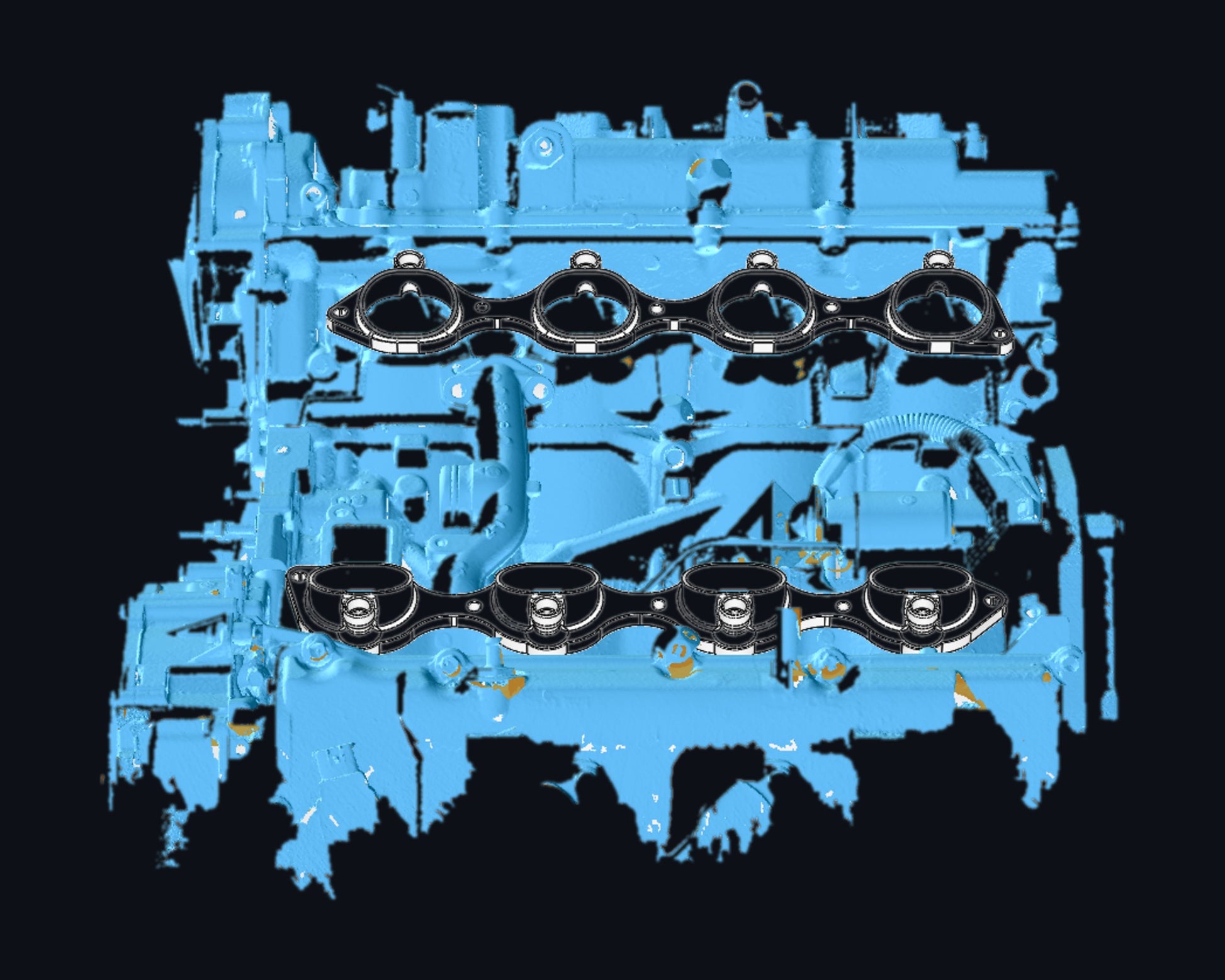

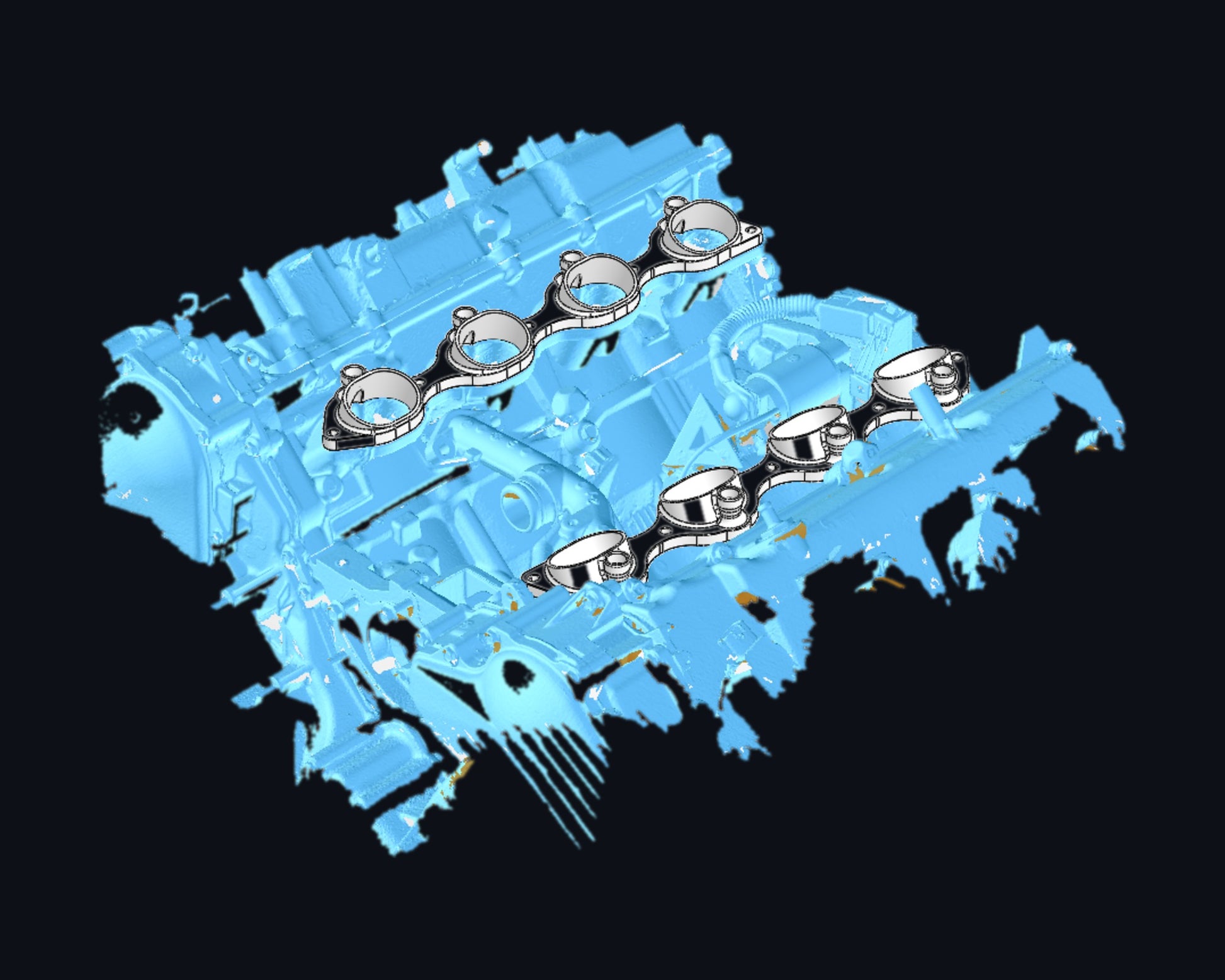

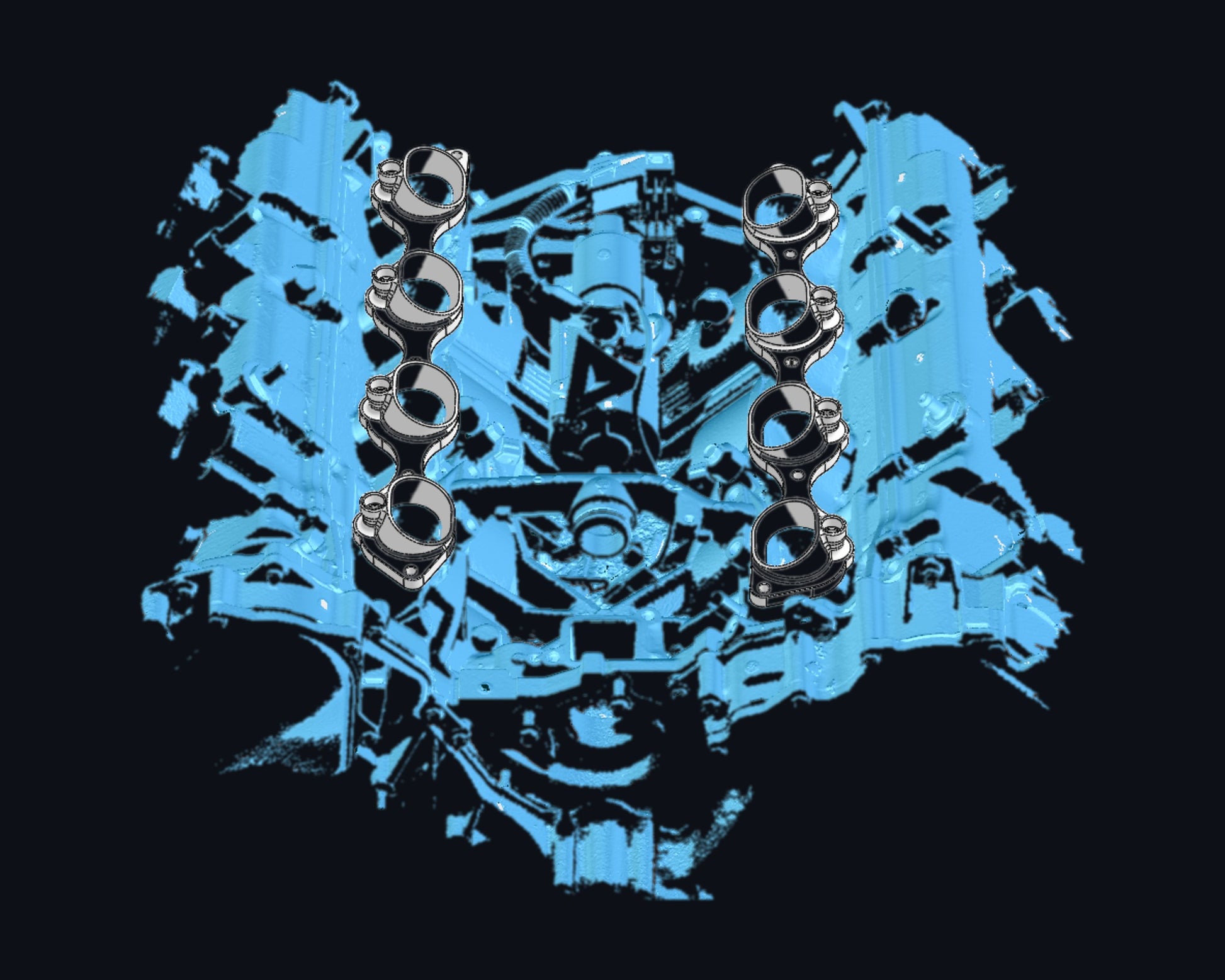

Nissan VK56 Head Flange

The head flange for a VK56 sheet metal intake, ready to metal print. This is the part everything else references. Get the port shape, the bolt pattern or the injector bore wrong and the whole manifold is scrap — which is why most people building their own VK56 intake never start.

There is almost nothing available for this engine. Four vendors worldwide sell a VK56 intake and only one of them is fabricated sheet metal — in New Zealand. If you're building your own, this is where it begins.

What you download

• STL built for metal printing — DMLS / SLM aluminium or stainless
• Single injector, 14mm injector bore
• Correct VK56 port shape and bolt pattern
• Instant download at checkout. Nothing ships.

Before you print

This is a metal print part, not a filament part. Send it to your service bureau as-is; leave machining stock on the sealing face if your process needs it. Titan, Armada, Patrol Y62, VK56DE and VK56VD builds.

Licence — Shop Use

Print it for your own build or for a customer's build in your shop. You may not share or resell the file, or produce flanges for sale to third parties. Print-and-sell licences available — ask.

Drawn by James Goertz, G1Pro. Building intake manifolds by hand since 2009 — hundreds of them.
