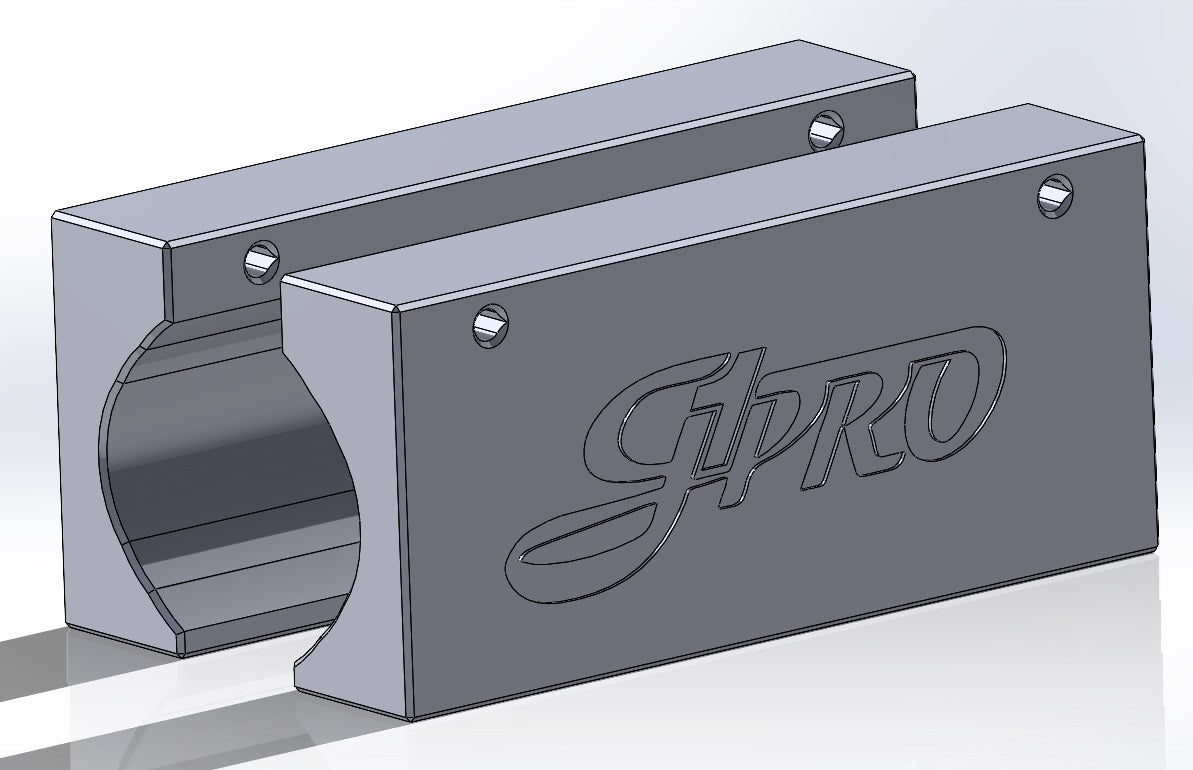

Straight Tube Cutting Jig

A cutting fixture for thin-wall tube that doesn't crush what it holds. Clamp thin-wall titanium in a vice and you oval it; oval it and the cut is no longer planar, and now nothing lines up. This holds the tube round while you cut it square.

No tape measure, no wrap, no marker. The fixture sets the cut, so part number four is identical to part number one.

What you download

• STL file for the size band you choose — or the Bulk Pack with all three
• Small 1"–2" (25.4–50.8mm) · Medium 2"–3" (50.8–76.2mm) · Large 3.5"–5" (88.9–127mm)
• Instant download at checkout. Nothing ships.

Print settings

My official settings for every G1Pro fixture: 2.5 mm walls, 2.5 mm top and bottom, 20% cubic infill, support-free, printed in Inland PETG-CF.

Licence — Shop Use

Print as many copies as you like for use in your own shop, including on paying customer jobs. You may not share or resell the file, or print copies of the fixture to sell. Print-and-sell licences available — ask.

Drawn by James Goertz, G1Pro. Building intake manifolds by hand since 2009; these are the fixtures off my own bench.
