Oval 15° Pie Cutting Jig

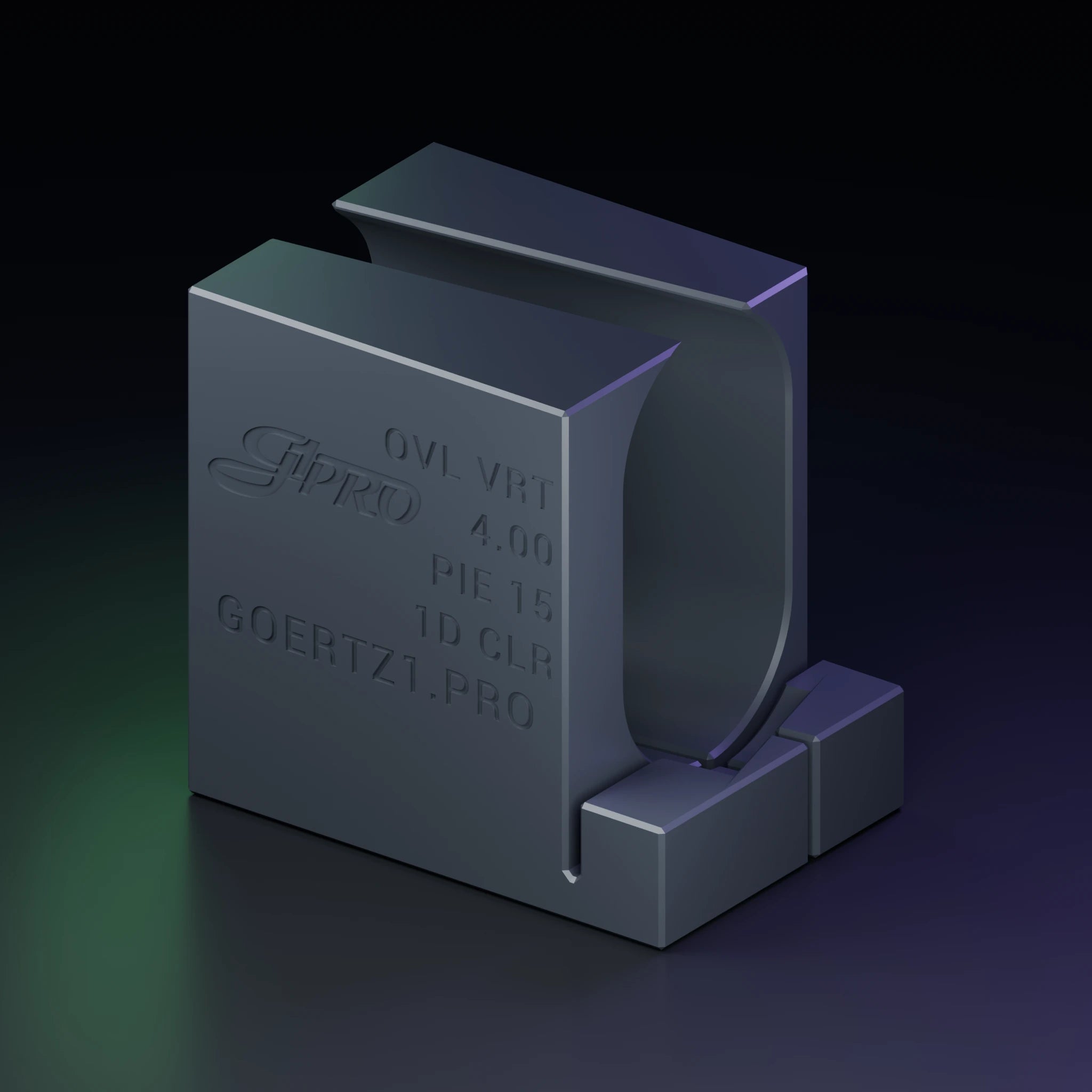

Pie cut fixtures for oval tube — the one shape nobody makes a jig for. Oval has two axes and no obvious datum, so almost everyone marks it freehand and lives with the result. These index off the oval itself, in both orientations.

You will not find another jig for this. Not printed, not machined, not in a catalogue. Oval tube fabricators have been marking by eye because there was no alternative.

What you download

• STL file for the size and orientation you choose — or the Bulk Pack with all six
• 2.50" (63.5mm) · 3.00" (76.2mm) · 4.00" (101.6mm), each in horizontal and vertical
• 1D centreline radius, 15° per cut — six cuts to a 90° bend
• Instant download at checkout. Nothing ships.

Print settings

My official settings for every G1Pro fixture: 2.5 mm walls, 2.5 mm top and bottom, 20% cubic infill, support-free, printed in Inland PETG-CF. Print one and check the fit on your tube before committing a spool.

Licence — Shop Use

Print as many copies as you like for use in your own shop, including on paying customer jobs. You may not share or resell the file, or print copies of the jig to sell. Print-and-sell licences available — ask.

Drawn by James Goertz, G1Pro. Building intake manifolds by hand since 2009; these are the fixtures off my own bench.
