X45 Fixtures

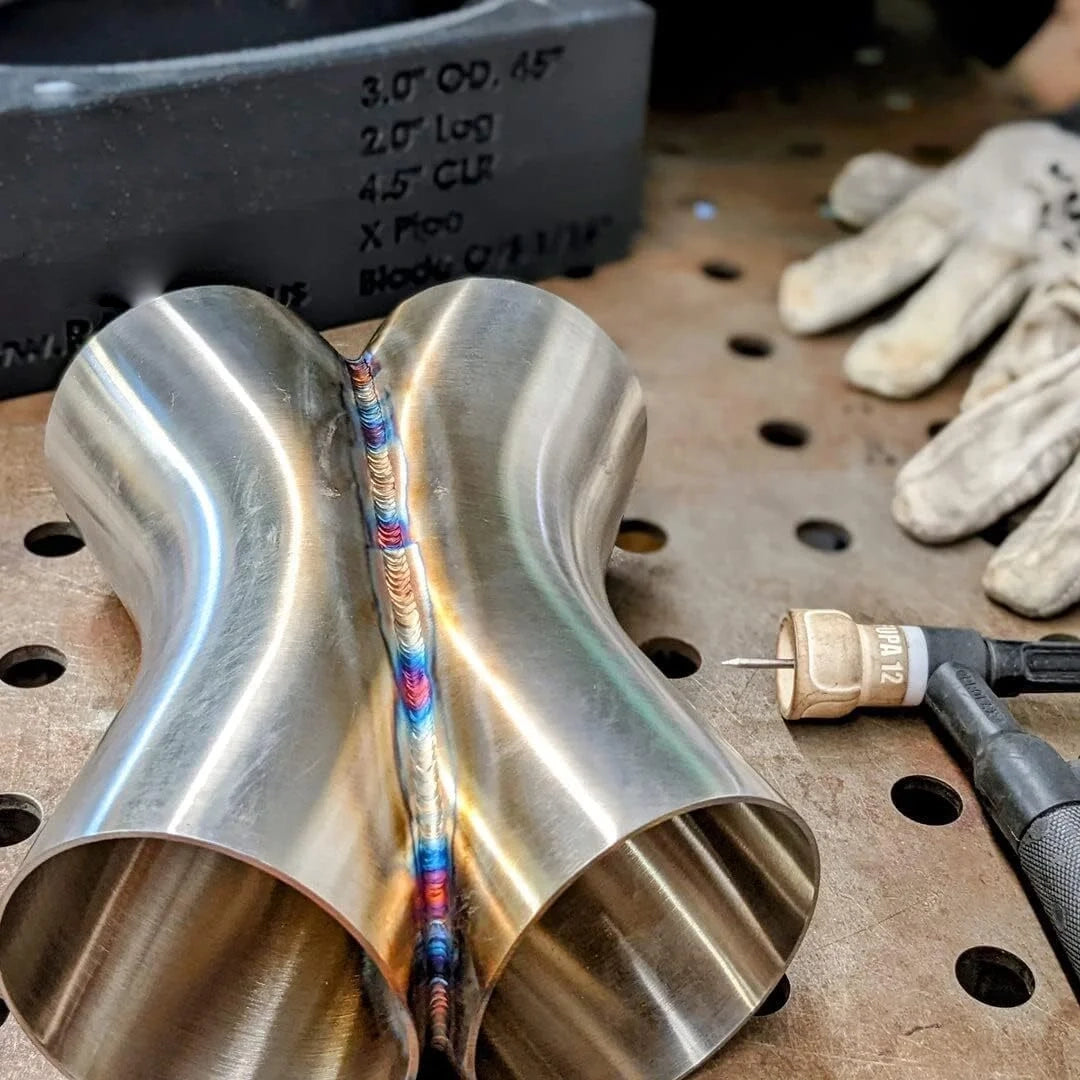

A physical X45 cutting fixture for X-pipe fabrication. Designed for mandrel-bent elbows with 2-inch legs, with dowel-pin alignment.

Before ordering

• Check your elbow size, leg length and bend radius.
• Select the available fixture configuration that matches your workpiece.
• This listing is for a physical fixture, not an STL file.

Need help confirming the configuration? Contact G1Pro with your elbow dimensions.
